Dust Extractors RP150YB / RP250YE / RP350YE

  • Image of RP150YB / RP250YE / RP350YE

    RP150YB

  • Image of RP150YB / RP250YE / RP350YE

    RP250YE

  • Image of RP150YB / RP250YE / RP350YE

    RP350YE

Compact & Lightweight

Approx. 87% * volume and approx. 89% * weight of the previous model with the same tank capacity.

  • A comparison between the model RP250YE and the previous model WDE3600M.
Interlocking Electric Outlet

Interlocking Electric Outlet 2,400W *

Equipped with an interlocking electric outlet.

  • These dust extractors can be connected with power tools consuming not more than 2,400W, including dust collection circular saws and miter saws.

    • Interlocking electric outlet 1,700W for UK, 1,200W for Australia.
    Interlocking Electric Outlet

Large vacuum switch for improved handling

Mode selection switch (Auto / Manual)

  • By pushing "A" (Auto) this appliance can be operated and stopped by the operation of the power tool connected.

    Large vacuum switch for improved handling

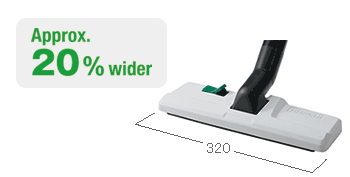

Wide master nozzle

  • Approx. 20% wider than the previous models' *
    for increased work efficiency.

    • In comparison with WDE1200M/WDE3600M.
    Wide master nozzle

Compatible with commercially available poly bags

Large poly guide for easily attaching a poly bag.

  • Compatible with commercially available poly bags,*1
    allowing for quick and easy dust disposal.

    1. Use 45L (800 x 650mm) poly bags with not less than 0.04mm thickness.
    2. In comparison with the previous models WDE1200M/WDE3600M.
    Compatible with commercially available poly bags

Convenient pipe holder

Allows for easy storage of the pipe by hooking the pipe hanger onto it during intermission of operation.

Convenient pipe holder

High-quality hose

  • More durable and flexible. Allows for comfortable handling due to less contraction during operation.*

    • In comparison with the previous models, WDE1200M/WDE3600M.
    High-quality hose

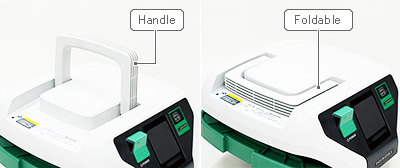

Flat top

  • The handle can be folded for the flat top.

    Flat top

Casters with stopper

  • Two casters with stopper retain the appliance for easy transportation.

    Casters with stopper

Specifications

Model RP150YB RP250YE RP350YE
Capacity Air Vacuum 22kPa
Air Volume Flow 3.5m3/min
Tank Material Resin Stainless Steel
Effective Dust Volume Dry 15L 25L 35L
Wet 12L 22L 30L
Power Input 1,140W
Insulation Grounded
Interlocking Electric Outlet 100 to 2,400W (100 to 1,700W for UK/100 to 1,200W for Australia)
Dimensions (W x D x H) 334mm x 366mm x 400mm
(13-9/32" x 14-13/32" x 15-3/4")
390mm x 469mm x 550mm
(15-3/8" x 18-15/32" x 21-21/32")
390mm x 469mm x 665mm
(15-3/8" x 18-15/32" x 26-3/16")
Weight 7.8kg (17.2lbs.) 9.4kg (20.7lbs.) 9.7kg (21.4lbs.)

Standard Accessories

Standard Accessories Hose (id 38mm x 3m long) Pipe Joint
Handle
Master
Nozzle
Crevice
Nozzle
Wet
Nozzle
Hose Pipe Joint Handle Master Nozzle Crevice Nozzle Wet Nozzle
No. used 1 2 1 1 1 1
Standard Accessories Round Brush Nozzle Joint (D) Adapter Poly Pouch (10 pcs.) Pipe Holder Pipe Hanger
Round Brush Nozzle Joint (D) Adapter Poly Pouch Pipe Holder Pipe Hanger
No. used 1 1 1 1 1 1
