MULTI VOLT(36V) Cordless Slide Compound Miter Saw C3612DRA

C3612DRA Cordless Slide Compound Miter Saw
  • MV
  • Torque Boost Brushless

Patent Pending The industry's revolutionary Torque Boost Technology to Combine Power and Speed for Optimal Performance

  • HiKOKI's original motor technology combines High-Speed motor and High-Torque motor into a single one, allowing for adjusting speed and power for optimal performance.
    Its new motor wiring structure enables automatic switch between High-Speed and High-Torque motors to achieve power and speed.

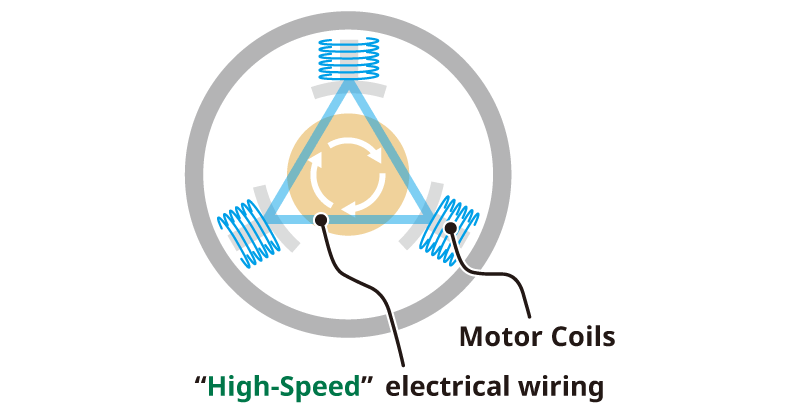

    'High-Speed' electrical wiring

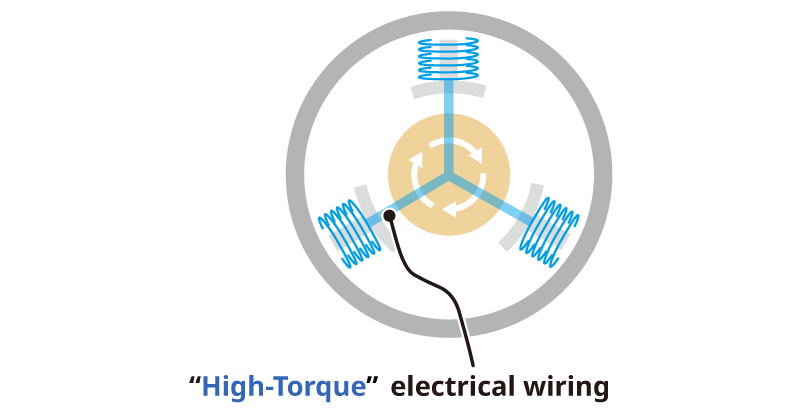

    'High-Torque' electrical wiring

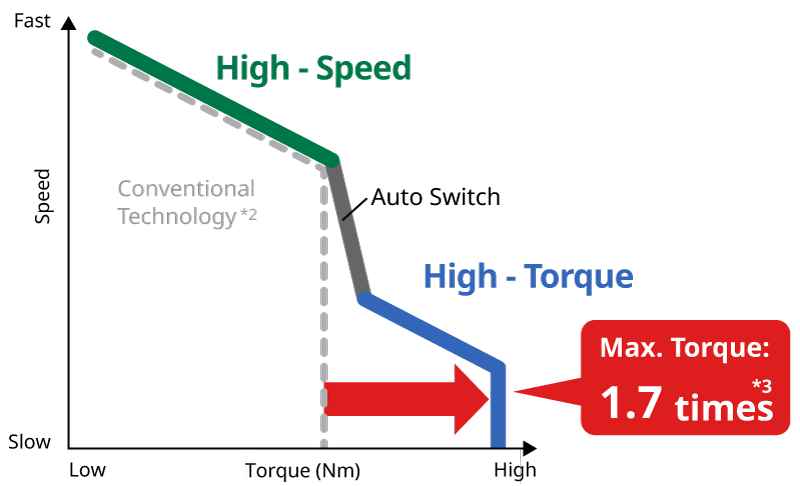

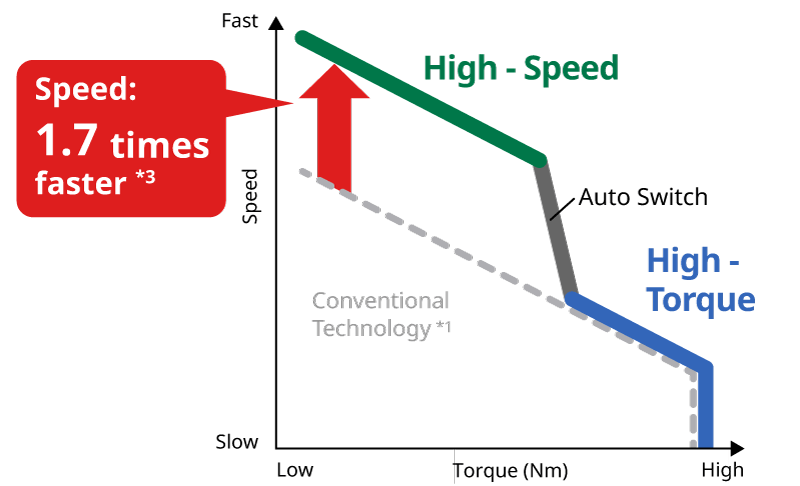

    Torque Boost Technology delivers 1.7 times faster speed than the conventional technology

    Torque Boost Technology provides 1.7 times max.torque to enable smooth cutting and prevent sudden stops under heavy load

  1. If the maximum torque of conventional motor were designed to be the same as that of High-Torque motor.
  2. If the maximum speed of conventional motor were designed to be the same that of High-Speed motor.
  3. The value is shown for reference purposes and may vary according to products and operating conditions.
  4. The images shown above are for illustration purposes only.

Smart Auto Switch Mode for High Speed and High Power

  • Auto Switch Mode automatically adjusts no load speed between 6,000 rpm (High Speed Cutting) and 4,500 rpm (High Torque) for you depending on the loads and applications, achieving high speed and high efficiency.

    Fast Cutting Speed

    Blade speed is up to 45%*1 faster than that of the conventional model.

    High Maximum Thrust Force

    When operating in Auto Switch mode, C3612DRA delivers about 15% more torque than the conventional model.

    Compared to the conventional model C3610DRA, the new model C3612DRA has 45% higher blade speed and 15% higher maximum torque.
  1. Comparison of Blade speed(min-1) at the same torque point.
  2. The values are shown for reference purposes and may vary according to conditions.

High Torque Mode for High Power and High Efficiency

  • The amount of work per charge can be done in the High Torque mode is around 1.9 times more than in the Auto Switch mode.
    High Torque mode is ideal for continuous heavy-load operation to prevent overheating of the tool body and the battery.

    Cutting Conditions:

    Material: SPF 2" x 12"
    Blade: Standard accessory
    Cutting: Right angle cutting

    230 for high torque mode, 120 for auto switch mode, approx. 2 times.
  • The values are shown for reference purposes and may vary according to materials and conditions.

2-Mode Speed Control

C3612DRA can be operated and switched between Auto Switch mode and High Torque mode to match the needs and applications.

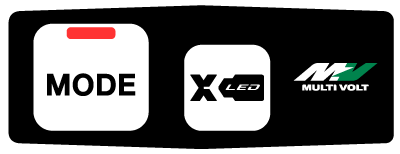

Mode Auto Switch High Torque
Status of
indicator lamp
No-load speed 4,000rpm 3,200rpm

Front Bevel Lock Handle

  • The bevel lock handle is conveniently located on the operator's side for easy loosening or tightening of bevel lock and improved efficiency.

XACT CUT LED™ (HiKOKI's original LED Lighting System)

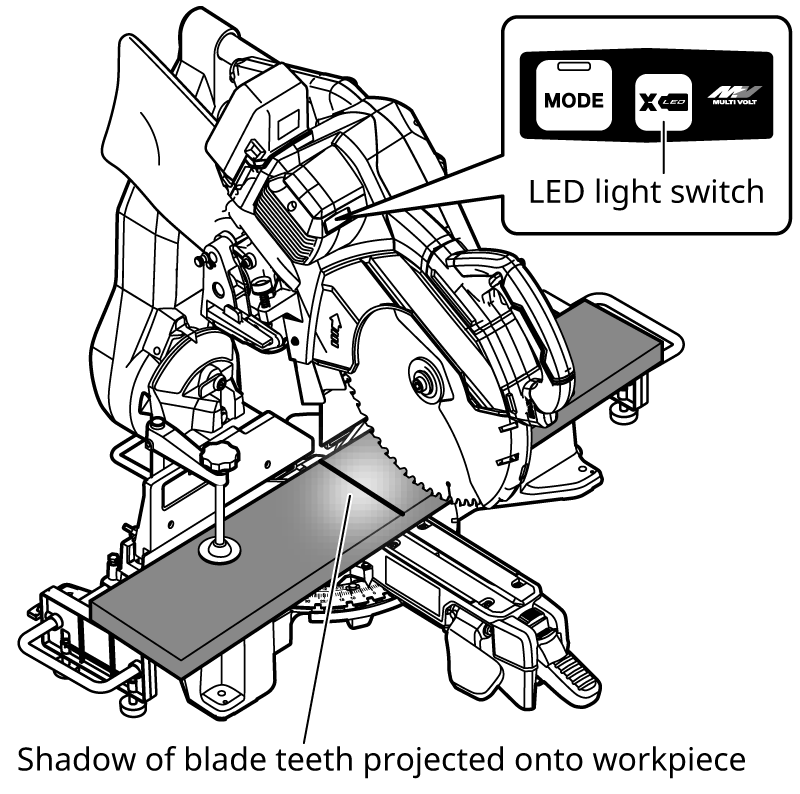

  • The XACT CUT LED™ LED lighting system uses a LED light to cast a shadow where the blade will cut on the material for precise and efficient cutting.

    XACT CUT LED logo
    LED light switch
    Shadow of blade teeth projected onto workpiece.

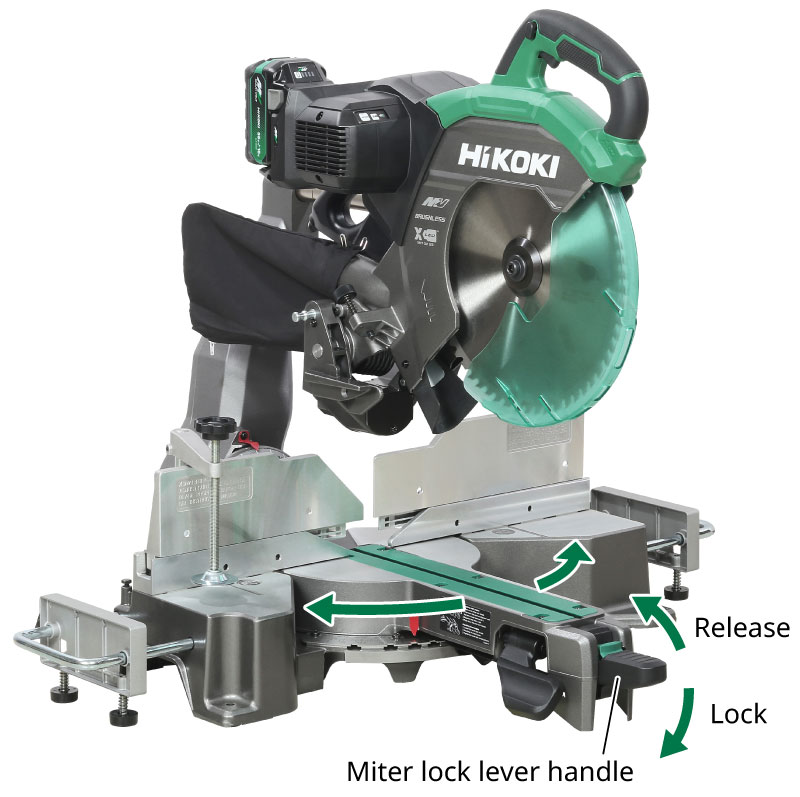

Ease-to-use Miter Lock Lever Handle

  • The miter lock lever handle enables for quick and easy locking or unlocking the turntable.

Adjustable metallic miter scale

The highly rigid metallic miter scale has nine positive stops and indications, for easy to read measurements and quick settings.

Linear Ball Bushings for Smooth Sliding

The linear ball bushings enable smooth and precise sliding.


Blade Dia. 305mm (12")
Saw Blade Bore 30mm (1-3/16")*1
25.4mm (1")*2
Type of Motor Brushless (Torque Boost Technology)
Capacity (H x W) 0°(Right Angle) 105 x 312mm (4-1/8" x 12-1/4")*1
107 x 312mm (4-3/16" x 12-1/4")*2
Miter Left/Right 45° 105 x 220mm (4-1/8" x 8-5/8")*1
107 x 220mm (4-3/16" x 8-5/8")*2
Miter Right 57° 105 x 170mm (4-1/8" x 6-11/16")*1
107 x 170mm (4-3/16" x 6-11/16")*2
Bevel Left 45° 68 x 312mm (2-5/8" x 12-1/4")*1
70 x 312mm (2-3/4" x 12-1/4")*2
Bevel Right 45° 43 x 312mm (1-11/16" x 12-1/4")*1
45 x 312mm (1-3/4" x 12-1/4")*2
Miter Left/Right 45° +
Bevel Left 45°
68 x 220mm (2-5/8" x 8-5/8")*1
70 x 220mm (2-3/4" x 8-5/8")*2
Miter Left/Right 45° +
Bevel Right 45°
43 x 220mm (1-11/16" x 8-5/8")*1
45 x 220mm (1-3/4" x 8-5/8")*2
Voltage 36V
No Load Speed Auto Switch Mode 4,000/min
High Torque Mode 3,200/min
Miter Angle Right 0 – 57°
Left 0 – 45°
Bevel Angle Right 0 – 45°
Left 0 – 45°
Positive Miter Angle Stop 0, Right and Left 15°, 22.5°, 31.6°, 45°
Dimensions Without Sub-table 655 x 873 x 724mm (25-25/32" x 34-3/8" x 28-1/2")
With Sub-table 916 x 873 x 724mm (36-1/16" x 34-3/8" x 28-1/2")
Weight*3 26.2kg (57.8lbs.) with BSL36B18X
Standard Accessories*4 2 Batteries (BSL36A18X), Charger (UC18YSL3),
Saw Blade, Dust Bag, Vise Assembly,
8mm Hex. Bar Wrench, Holder,
Sub table Assembly, Battery Cover
  1. Europe
  2. APAC
  3. According to EPTA-Procedure 01/2014.
  4. Standard accessories vary by country or area.
  • Please contact local dealers for product availability and product details.
