MULTI VOLT(36V) Cordless Circular Saw C3607DB

MULTI VOLT
C3607DB Cordless Circular Saw
  • MV
  • Torque Boost Brushless

Patent Pending The industry's revolutionary Torque Boost Technology to Combine Power and Speed for Optimal Performance

  • HiKOKI's original motor technology combines High-Speed motor and High-Torque motor into a single one, allowing for adjusting speed and power for optimal performance.
    Its new motor wiring structure enables automatic switch between High-Speed and High-Torque motors to achieve power and speed.

    'High-Speed' electrical wiring
    ⇔
    'High-Torque' electrical wiring

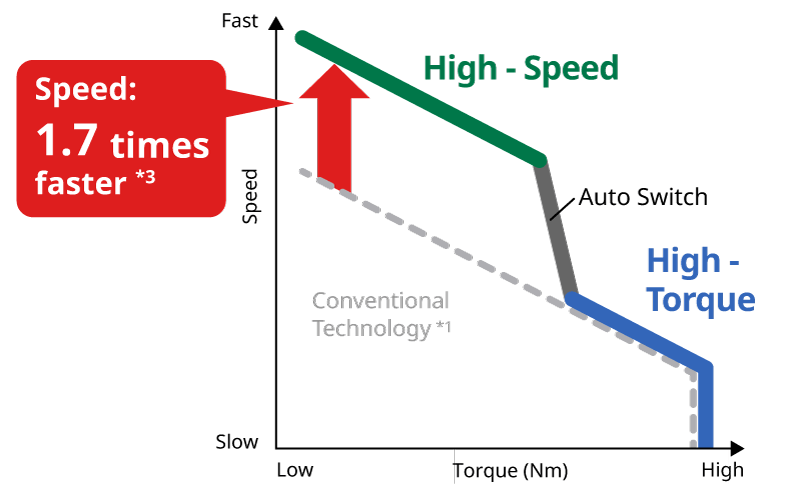

    Torque Boost Technology delivers 1.7 times faster speed than the conventional technology

    Torque Boost Technology provides 1.7 times max.torque to enable smooth cutting and prevent sudden stops under heavy load

    ⇔
  1. If the maximum torque of conventional motor were designed to be the same as that of High-Torque motor.
  2. If the maximum speed of conventional motor were designed to be the same that of High-Speed motor.
  3. The value is shown for reference purposes and may vary according to products and operating conditions.
  4. The images shown above are for illustration purposes only.

Smart Auto Switch Mode for High Speed and High Power

  • Auto Switch Mode automatically adjusts no load speed between 6,000 rpm (High Speed Cutting) and 4,500 rpm (High Torque) for you depending on the loads and applications, achieving high speed and high efficiency.

    Fast Cutting Speed
    Cutting speed is approximately 2 times faster than C3607DA when cutting SPF2x10 lumber in Auto Switch mode.

    Graph showing approx 2times faster the cutting speed
    • The cutting speed of C3607DA is indexed at 100%.
      The values are shown for reference purposes and may vary according to materials and conditions.

    High Maximum Thrust Force
    When operating in Auto Switch mode, C3607DB provides the same maximum thrust forces as existing C3607DA, the model with superior overload capability

High Torque mode for Highly Efficient Cutting performance

  • Runtime per charge: Up to 770 2x4 SPF cuts per charge

    • The values are shown for reference purposes and may vary according to materials and conditions.

2-Mode Speed Control

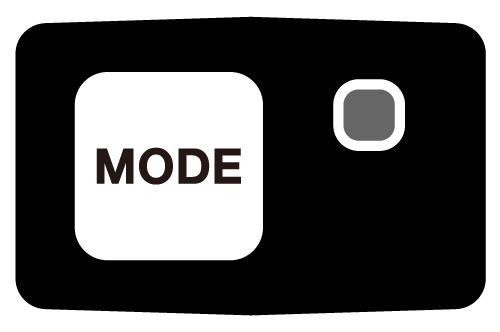

  • Image showing control switch location
    Mode Auto Switch High Torque
    Status of
    indicator lamp
    Indicator lamp turns off
    in Auto Switch Mode
    Indicator lamp turns on
    in High Torque Mode
    No-load speed 6,000rpm 4,500rpm

Convenient Rafter Hook

  • Rafter hook allows for safety and easy storage

Guide Rail Adapter*1

  • Guide rail adapter allows the use of guide rail*2 for precise and smooth cutting.
    For details of guide rail accessories, please refer to the PDF Guide Rail Solution.

    Guide Rail Solution (534KB)

    No. 380742

  1. Guide rail adapter is provided as a standard accessory in Europe and an optional accessory in APAC region and Taiwan.
  2. Guide rail (No. 4100071, No.4100072) or select competitive guide rails. Guide rail is needed when using the guide rail adapter.

Dust Collector

  • Dust collector allows for connection with a dust extractor to keep work environment clean and safe.

    No. 377954 for EU
    No. 380086 for APAC and Taiwan
  • Dust Collector is provided as a standard accessory in Europe and an optional accessory in APAC region and Taiwan.

Large Sub Handle

Large sub handle enables comfortable cutting.

Dust Blower

Clears the cutting path of dust and debris for a clear view over the cutting line.

Integrated LED Light

Provides better cutline visibility.

Soft Start

Reduces noise and recoil during startup and stop.

Electronic Brake System

Electric brake for increased safety and productivity.

Specifications

Capacity Blade Dia. 185mm (7-1/4")*1
190mm (7-1/2")*2
Max Cutting depth 90° 62mm (2-7/16")*1
64.5mm (2-17/32")*2
Max Cutting depth 45° 47.5mm (1-7/8")*1
49mm (1-15/16")*2
Battery Voltage 36V
Type of Motor Brushless (Torque Boost Technology)
No Load Speed Auto Switch Mode 6,000/min
High Torque Mode 4,500/min
Overall Length 313mm (with BSL36A18X)
328mm (with BSL36B18X)
Weight*3 4.3kg (9.5lbs.) (with BSL36A18X)
4.6kg (10.1lbs.) (with BSL36B18X)
Standard Accessories*4 2 Batteries (BSL36A18X), Charger (UC18YSL3),
Saw Blade, Wrench, Guide Rail Adapter,
Dust Collector Set, Battery Cover, Carrying Case
  1. APAC
  2. Europe, Taiwan
  3. According to EPTA-Procedure 01/2014. Weight without the tipped saw.
  4. Standard accessories vary by country or area.
  • Please contact local dealers for product availability and product details.
