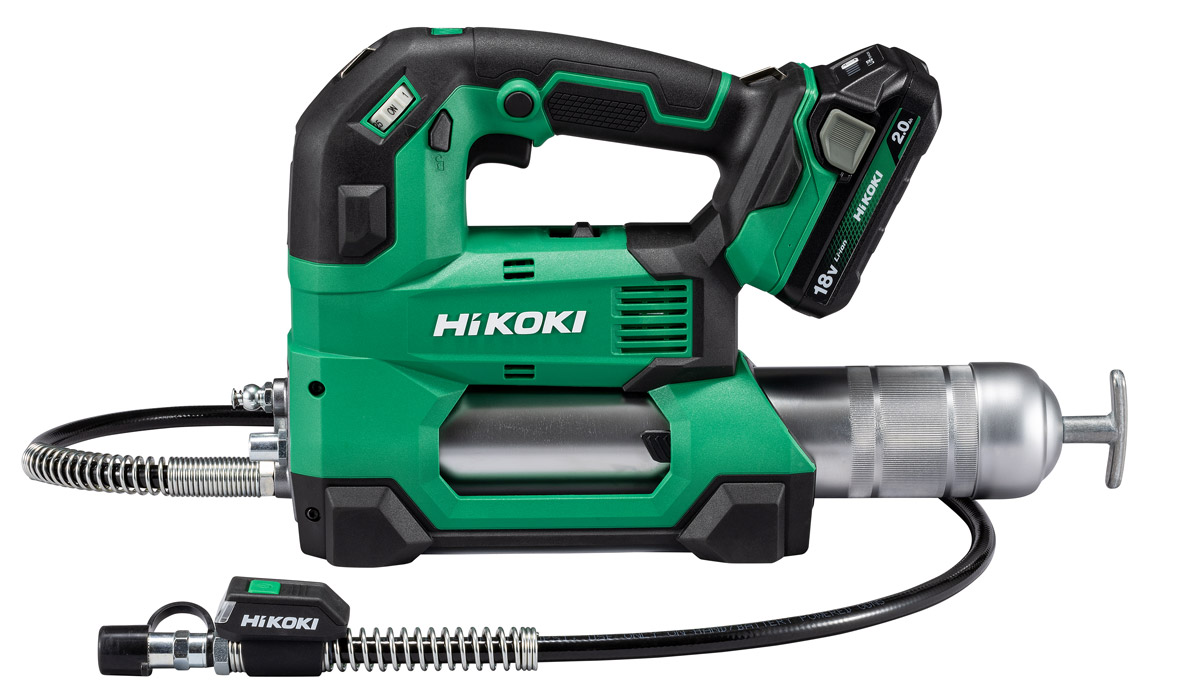

18V Cordless Grease Gun AL18DA

AL18DA

For EU

AL18DA

For APAC

  • 18V

  • Top-class* Flow Rate
    Fast flow rate of up to 297mL/min.

    • As of June 2024, among the cordless grease guns by leading power tool manufacturers (Surveyed by Koki Holdings).

  • Top-class Maximum Pressure
    High discharge pressure of up to 69Mpa.

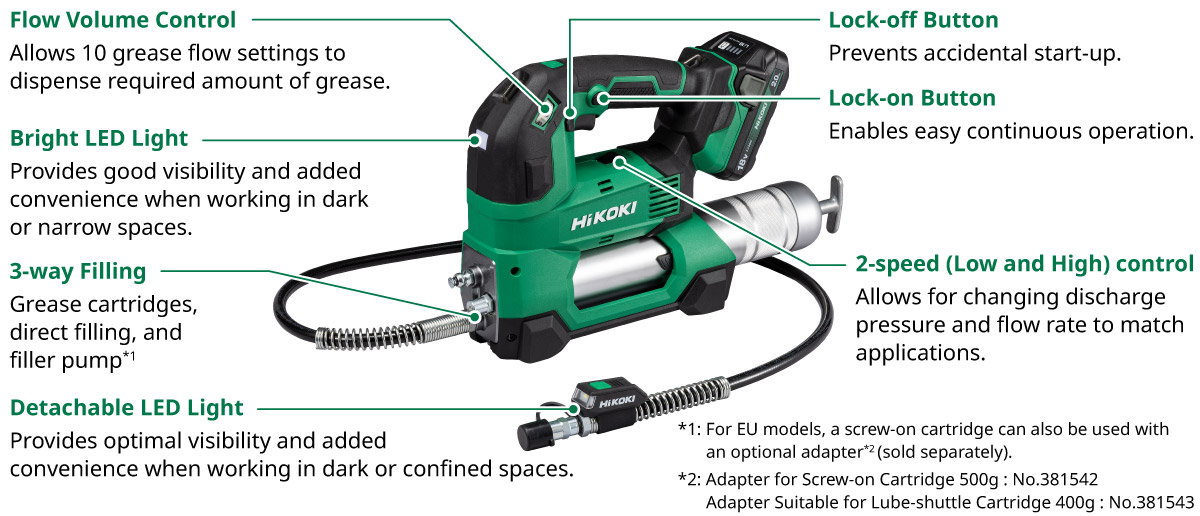

Explanatory image of Product features and specifications. Flow Volume Control: Allows 10 grease flow settings to dispense required amount of grease. Bright LED Light: Provides good visibility and added convenience when working in dark or narrow spaces. 3-way Filling: Grease cartridges, direct filling or screw cap cartridge*1/ filler pump*2. Detachable LED Light: Provides optimal visibility and added convenience when working in dark or confined spaces. Lock-off Button: Prevents accidental start-up. Lock-on Button: Enables easy continuous operation. 2-speed (Low and High) control: Allows for changing discharge pressure and flow rate to match applications. *1. For EU model *2. For APAC model

Top-class* Flow Rate and Maximum Pressure

This 18V cordless grease gun AL18DA delivers high discharge pressure of up to 69MPa and fast flow rate of up to 297mL/min for quick and efficient working.

  • As of June 2024, among the cordless grease guns by leading power tool manufacturers (Surveyed by Koki Holdings).

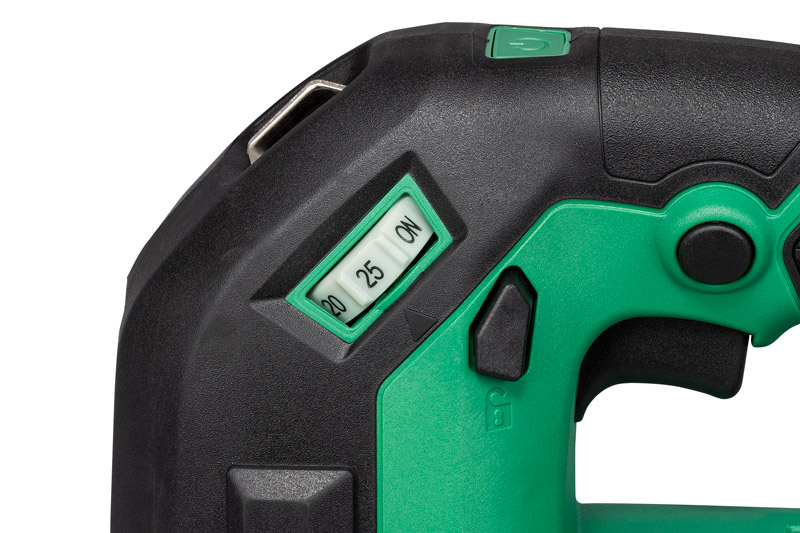

Flow Volume Control

  • This grease gun AL18DA comes with flow volume control that allows 10 grease flow settings to dispense required amount of grease.

    High-pressure mode icon

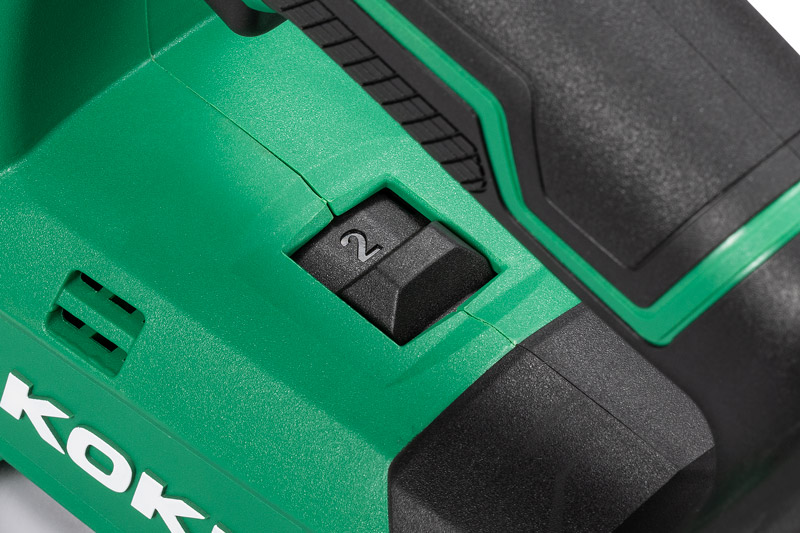

2-speed (Low and High) control

  • The 2-speed (Low Speed:1 and High Speed:2) control enables changing discharge pressure and flow rate to match applications.

    High-volume mode icon

Two Bright LED Lights

  • The grease gun AL18DA comes with one integrated LED light and one attachable LED light on the hose for providing good visibility and added convenience when working in dark or narrow spaces.

    Settings button and display

3-way Filling

This grease gun can be filled via grease cartridges, direct filling, and filler pump for added convenience*1.

  1. For EU models, a screw-on cartridge can also be used with an optional adapter*2 (sold separately).
  2. Adapter for Screw-on Cartridge 500g : No.381542
    Adapter Suitable for Lube-shuttle Cartridge 400g : No.381543

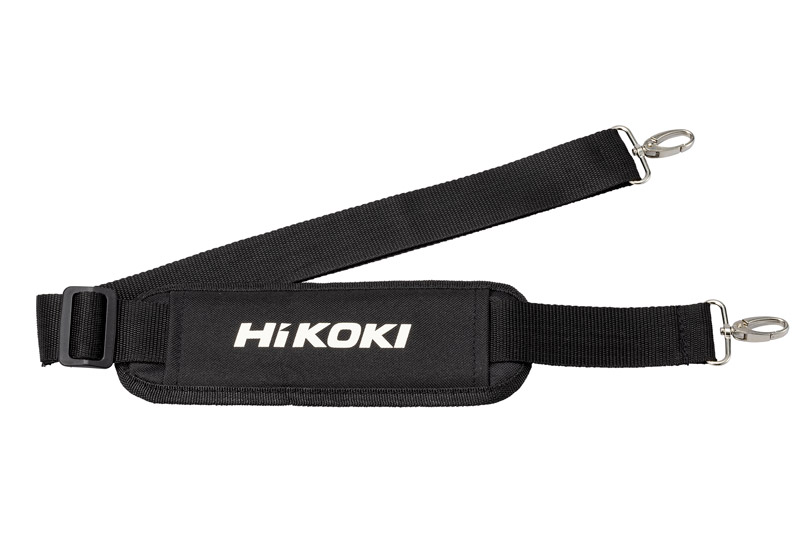

Convenient Shoulder Strap

A shoulder strap is included for ease of carrying and ease of use.

Image of LED light on

Specifications

Model For EU For APAC
Grease Capacity 400g 450g
Speed Level 2-speed
Discharge Pressure Low 69MPa
High 41MPa
Flow Rate Low 115mL/min
High 297mL/min
Type of Motor Brushed
Hose length 1,200mm
Switch Lock Provided
Flow Volume Control Dial Provided (10 Settings)
Dimensions (L x W x H) 392 x 110 x 227mm 412 x 110 x 227mm
Weight 4.5 kg with BSL1820M
5.1 kg with BSL36B18X*1,2 		4.3 kg without battery
5.0 kg with BSL36A18X*2
Compatible Battery MULTI VOLT battery and BSL18XX series
Vibration Total Values
(triax vector sum)*3		 Vibration Emission Values <2.5m /s2
Uncertainty K 1.5m/s2
Noise*4 Sound Power Level 87dB
Sound Pressure Level 79dB
Uncertainty K 3dB
Standard accessories*5 Shoulder Strap, LED light for hose, BSL1820M Battery,
Battery Cover, Charger(UC18YSL3), Case
  1. According to EPTA-Procedure 01/2014.
  2. Sold separately.
  3. Vibration total values (triax vector sum) determined according to EN62841
  4. Noise values determined according to EN62841 and declared in accordance with ISO 4871
  5. Standard accessories vary by country or area.
  • Please contact local dealers for product availability and product details.
