MULTI VOLT(36V) Cordless Rotary Hammer DH36DPE

MULTI VOLT
  • DH36DPC
  • MV
  • Brushless Motor
  • User Vibration Protection
  • Reactive Force Control
Specifications and others

Lightweight & Easy to Use

  • With BSL36A18 battery (Inc. Side Handle).

    Hikoki Cordless Rotary Hammer Drill (DH36DPE) is 0.3kg lighter than the conventional product (DH36DPA)

Corded Performance with Cordless Flexibility

  • The DH36DPE cordless rotary hammer offers an impact energy equivalent to or higher than its corded counterpart*1, providing the power to drill fast without sacrifcing comfort and control.

    1. DH28PEC
    2. Impact energy according to EPTA-Procedure 05 (Ver.2.0).
    Impact energy of DH136DPE is 3.2J

Low Vibration

  • The DH36DPE rotary hammer employs the dynamic vibration absorber that reduces vibration and fatigue.

    UVP
    Hikoki Cordless Rotary Hammer Drill (DH36DPE) Weight Mechanism

    Vibration Comparison*

    Our conventional product DH36DPA has low vibration at 17.5m/s2 and DH36DPE at 12.2m/s2.
    • The values are shown for reference purposes and may vary according to materials and conditions.

2-step Rotation Speed

  • The 2-step speed switch provides normal and low speed settings for different applications.
    The low speed mode reduces the rotation speed and impact rate, making it easier to drill into brittle materials.

    Mode LOW NORMAL
    Display Lamp Display lamp illustration at LOW Display lamp illustration at NORMAL
    RPM 0-700/min 0-950/min
    BPM 0-3,170/min 0-4,300/min

Bright LED Light

  • Illuminates the spot you are working on, and turns off 10 seconds after releasing the trigger switch.
    The light does not illuminate the drill bit with the dust extractor system attached to the tool.

    Hikoki Cordless Rotary Hammer Drill (DH36DPE) LED Light Illumination Image

Auto Stop Function for Consistently Drilling Holes

  • Once the initial drilling time is recorded on the tool, the motor is designed to automatically stop when the recorded time has passed, enabling a stable and efficient continuous operation.

    For example, if it takes 10 seconds from turning on the switch to turning it off, that 10 seconds will be memorized, and the next drilling will automatically stop in 10 seconds.
Caution
The auto stop function is used to record the drilling time. Thus, it may not provide the same drilling depth owing to the operator position, pushing force, and variation among the workpieces. Please use a depth gauge to ensure the drilling depth.

Reactive Force Control Against Sudden Overburdening

  • When the tool bit is suddenly overburdened during operation, the slip clutch works or the built-in controller stops the motor output before the entire tool jerks.

    Caution
    Depending on the operating conditions, the Reactive Force Control function may not work or provide the specified performance. Please make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation.
    RFC explanatory illustration

Runtime per Charge*

Work Ah Runtime per Charge*
Concrete Drilling 30mm in Depth
⌀12.5mm Drill Bit		 2.5Ah Approx. 101 Holes per Charge
30mm in Depth
⌀18mm Drill Bit		 2.5Ah Approx. 50 Holes per Charge
  • The values are shown for reference purposes and may vary according to materials and conditions.

Specifications

Dust Extractor System Not Included Included
Capacity Concrete 28mm 20mm
Steel 13mm -
Wood 32mm -
Battery Voltage 36V
Bit Shank SDS-plus
Impact Energy*1 3.2J
No Load Speed Normal 0 – 950/min
Low 0 – 700/min
Full Load Impact Rate Normal 0 – 4,300/min
Low 0 – 3,170/min
Overall Length 368mm 510mm
Weight*2 3.6 - 3.9kg*3
3.6kg (with BSL36A18)		 4.7-5.0kg*3
4.7kg (with BSL36A18)
Vibration Total Values
(triax vector sum)*4 		Hammer Drilling into Concrete Vibration emission value ah, HD = 12.2m/s2 Vibration emission value ah, HD = 10.3m/s2
Uncertainty K = 1.5m/s2 Uncertainty K = 1.5m/s2
Equivalent Chiselling Value Vibration emission value ah, CHeq = 11.0m/s2 -
Uncertainty K = 1.5m/s2 -
Standard Accessories*5 2 Batteries (BSL36A18), Charger (UC18YSL3), Side Handle, Depth Gauge, Battery Cover, Carrying Case, Cap
  1. Impact energy according to EPTA-Procedure 05 (Ver.2.0).
  2. Weight according to EPTA-Procedure 01/2014. Weight varies depending on the battery used.
  3. With BSL36B18 battery (sold separately).
  4. The vibration total values were determined according to EN60745.
  5. Standard accessories vary by country or area.

Optional Accessories

  • Dust Extractor System only (Code No. 376971)
    Carrying Case included (Code No. 376972)

Dust Extractor System Sustained Suction & Clean Air Exhaust

  • Hikoki Cordless Rotary Hammer Drill (DH36DPE) Dust Collection System Explanation Image
    • Drill bit sold separately.

  • 1.Cyclonic Separation

    The dust extractor uses centrifugal force to separate dust particles and maximize suction.

    Dust Box Capacity*
    Drilling holes (14.5mm in diameter, 50mm in depth) horizontally

    • The values are shown for reference purposes and may vary according to materials and conditions.
    A graph comparing dust collection performance. The number of holes drilled until the dust collection rate drops during the garbage disposal period is 23 for the DH36DPB (conventional product) and 52 for the DH36DPE, indicating that the suction power does not easily drop.

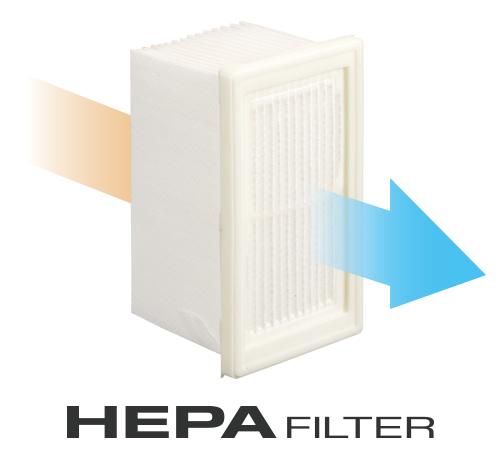

  • 2.HEPA Filter

    The HEPA filter collects 99.97% of all particles greater than 0.3um.

    Hikoki Cordless Rotary Hammer Drill (DH36DPE) HEPA Filter Image

  • Quick Release

    For easy attachment and disassembly

    Hikoki Cordless Rotary Hammer Drill (DH36DPE) Detachable Image

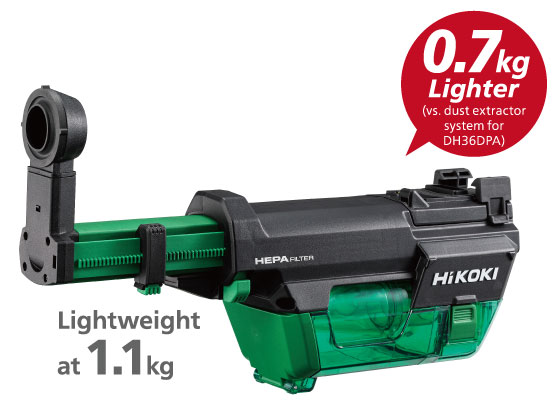

  • Lightweight

    Thanks to the motorless design

    The dust collection system of Hikoki Cordless Rotary Hammer Drill (DH36DPE) is 0.7 kg lighter than conventional products.

  • Compact Design

    Ideal for confined spaces

    The height of the body with the dust collection system is 310 mm for the DH36DPA (conventional product) and 225 mm for the DH36DPE.

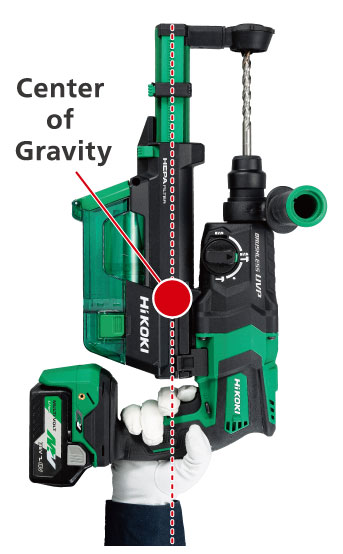

  • Ergonomic and Well-Balanced

    For easier overhead drilling

    The Hikoki Cordless Rotary Hammer Drill (DH36DPE) with a dust collection system is well balanced.
PDF： 1,924KB
  • Please contact local dealers for product availability and product details.
