160mm (6-19/64") Jig Saw CJ160VA

Jig Saw CJ160VA

AUTO Mode function

AUTO Mode, as well as Standard Mode, can be selected to suit the application.
Standard Mode
The user can change the blade operating speed freely between 800/min and 2,800/min.

  • Dial
    Mode Dial Blade operating speed (approx.)
    Standard Mode 1 - 5 800 - 2,800/min
    AUTO Mode A No load : 1,400/min
    With load : 2,800/min

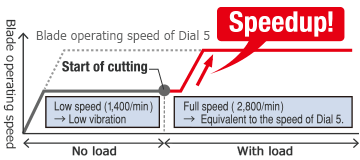

  • AUTO Mode
    AUTO Mode "A" automatically changes the blade operating speed under load from 1,400/min to 2,800/min. Once increased to 2,800/min, the speed is maintained until the switch is turned off.

    Low speed and low vibration at no load make it easy to start cutting on the line.

    AUTO Mode

Low vibration

Is achieved by the optimal blade position and well-balanced weight distribution.

Constant speed control

Keeps speed constant even as load varies, enabling smooth cutting.

Our original orbital mechanism

  • Orbital operation can be adjusted to suit the work material for smoother cutting.

    Our original orbital mechanism

Toolless blade change

  • The blade can be removed without any tools.

    Toolless blade change

One-touch sub base for curved cutting

  • The sub base can be attached without any tools, and make curved cutting easier by eliminating any snags that may occur between the rear of the base and the work material.

    One-touch sub base for curved cutting

Fluorine base plate

  • For less frictional resistance between the work material and base surface.

    Fluorine base plate

Connectable with a dust extractor

  • The jig saw works with a dust extractor. To do so requires an optional adapter.

    Connectable with a dust extractor

Soft barrel-grip handle

  • For more control and comfort.

    Soft grip handle

Other features for comfortable operation

Built-in LED light, Splinter guard, Blower function

Specifications

Capacity Wood 160mm (6-19/64")
Aluminium 20mm (25/32")
Mild steel 10mm (25/64")
Min Cutting Radius 25mm (1")
Power Input 800W
Length of Stroke 26mm (1-1/32")
No Load Speed (stroke) 800 - 2,800/min
Overall Length 273mm (10-3/4")
Weight*1 2.5kg (5.5lbs.)
Vibration Total Values
(triax vector sum)*2
Cutting wood Vibration emission value : ah, B = 9.5m/s2
Uncertainty K = 1.5m/s2
Cutting sheet metal Vibration emission value : ah, M = 7.0m/s2
Uncertainty K = 1.5m/s2
Standard Accessories Blades (No.41, No.42, No.123X), Splinter Guard, Sub Base, Chip Cover, Dust Collection Adapter, Wrench, Carrying Case
  1. Weight: According to EPTA-Procedure 01/2003.
  2. Vibration total values (triax vector sum) determined according to EN60745.
