216mm Slide Compound Miter Saw C8FSHG

305mm(12) Slide Compound Miter Saw FC8FSHG
  • Double Insulation

Compact slide system allows for efficient cutting in tight spaces

  • With a motor head that slides along the fixed rails with zero rear clearance, this system provides large cutting capacity in tight spaces or when the tool is placed against a wall.

    Compact slide system of Image

Adjustable Sliding Sub-fence

  • for increased stability to support workpieces

    Sub-fence of Image

Extendable Table (Right & Left)

  • can be adjusted using a measuring guide, and the required width can be set

    Extendable Table of Image

Laser Marker

  • Guide System on cut line

    Laser Marker of Image

Specifications

Max Cutting Capacity (H x W)

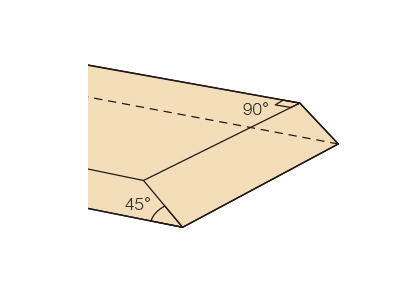

  Bevel Left 45° Bevel 0°

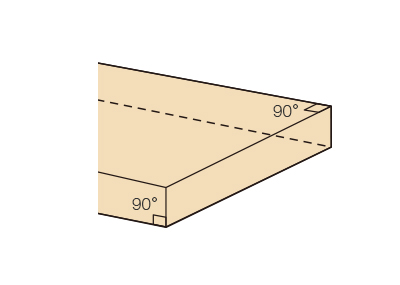

Miter 0°
26 × 305mm (Without anchor plate)
38 × 280mm (With anchor plate)

54 × 305mm (Without anchor plate)
65 × 280mm (With anchor plate)
Miter Left / Right 45°
26 × 210mm (Without anchor plate)
38 × 203mm (With anchor plate)

54 × 210mm (Without anchor plate)
65 × 203mm (With anchor plate)
Blade Dia. 216mm
Miter Cutting Angle Right 0° - 48°, Left 0° - 48°
Bevel Cutting Angle Right 0° - 2°, Left 0° - 47°
Positive Miter Angle Stops 0°, Right and Left 15°, 22.5°, 31.6°, 45°

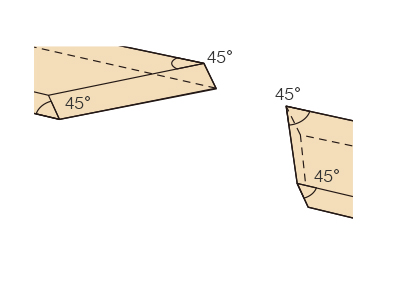

Compound Cutting Angle Bevel Left 0° – 45°, Miter Left 0° – 45°
Bevel Left 0° –45°, Miter Right 0° – 45°
Power Input *1 1,100W (110V: 1,030W)
No Load Speed 5,300min-1(/min)
Dimensions 528 x 725 x 495mm
Weight *2 13.8kg
Standard Accessories *3 Blade, Miter Handle, Dust Bag, Vise Ass’y, Holder, Blade Spanner
  1. Power requirements may vary depending on the area.
  2. Weight according to EPTA-Procedure 01/2014.
  3. Standard accessories vary by country or area.

Optional Accessory

Name Code No. for Model
Adapter for Dust Collection 374294 C 8FSHG, C 10FSHC, C 3610DRA
