190mm (7-1/2") Circular Saws with Riving Knife C7U3 / C7BU3 / C7UM / C7BUM

  • C7U3 / C7BU3 / C7UM / C7BUM

    C7U3

  • C7U3 / C7BU3 / C7UM / C7BUM

    C7BU3

  • C7U3 / C7BU3 / C7UM / C7BUM

    C7UM

  • C7U3 / C7BU3 / C7UM / C7BUM

    C7BUM

Guide Rail-Adapted Base for precise, straight cutting with guide rail

for C7UM / C7BUM only

Parallelism Adjustment System

  • for C7UM / C7BUM only

    Parallelism Adjustment System

Clear view over the cutting line with Blower Function *

for C7U3 / C7BU3 only

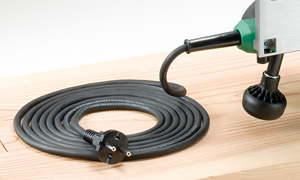

Longer cord length* 4m

    • In comparison with the previous models C7U2 / C7BU2.
    Longer cord length 4m

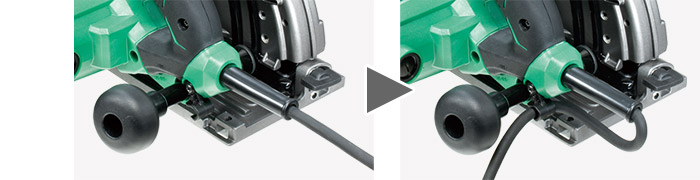

Convenient Cord Holder

  • to change the position of the power cord for user convenience

    Convenient Cord Holder

Aluminium Saw Cover

Aluminium Saw Cover

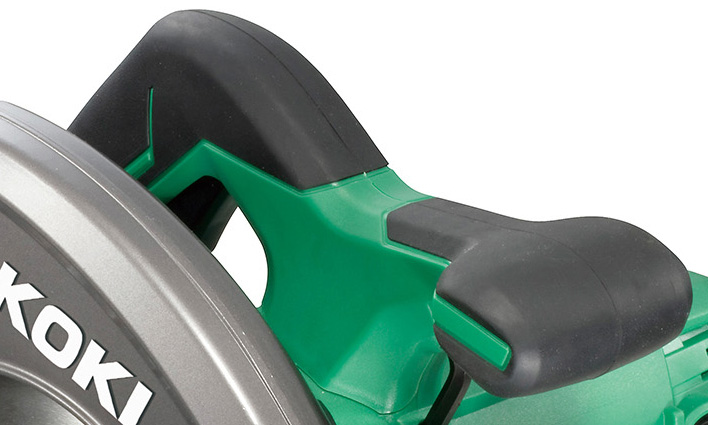

Soft Grip Handle

  • for more comfort and control

    Soft Grip Handle

Large Knob

  • easy to adjust cut depth

    Large Knob

Riving Knife

Riving Knife

Adapter for dust collector included

Adapter for dust collector included

Convenient Electric Brake

for C7BU3 / C7BUM only

Specifications

Model C7U3 / C7BU3 C7UM / C7BUM
Capacity Blade Dia. 190mm (7-1/2")
Max Cut Depth 90° 66mm (2-19/32”)
45° 48mm (1-7/8”)
Power Input 1,300W *1 (110V : 1,200W) 1,300W
No Load Speed 5,800/min
Overall Length 314mm (12-3/8”) 366mm (14-13/32”)
Weight *2 4.7kg (10.4lbs.) 5.2kg (11.5lbs.)
Standard Accessories Blade, Guide, Bolt, Wrench, Adapter for Dust Collector, Short Lever
  1. Power requirements may vary depending on the area.
  2. Weight according to EPTA-Procedure 01/2003.

Optional Accessories

Part Name Length Code No. For Model
Guide Rail Guide Rail 800mm (31-1/2") 370105 All Models *
1,400mm (55-1/8") 370106
Guide Rail Adapter Ass'y Guide Rail Adapter Ass'y - 331762 C7U3, C7BU3
  • When using the guide rail with the C7U3 and C7BU3, the optional guide rail adapter ass'y is required.
