165mm (6-1/2") Circular Saws with Riving Knife C6U3 / C6BU3 / C6UM / C6BUM

  • C6U3

    C6U3

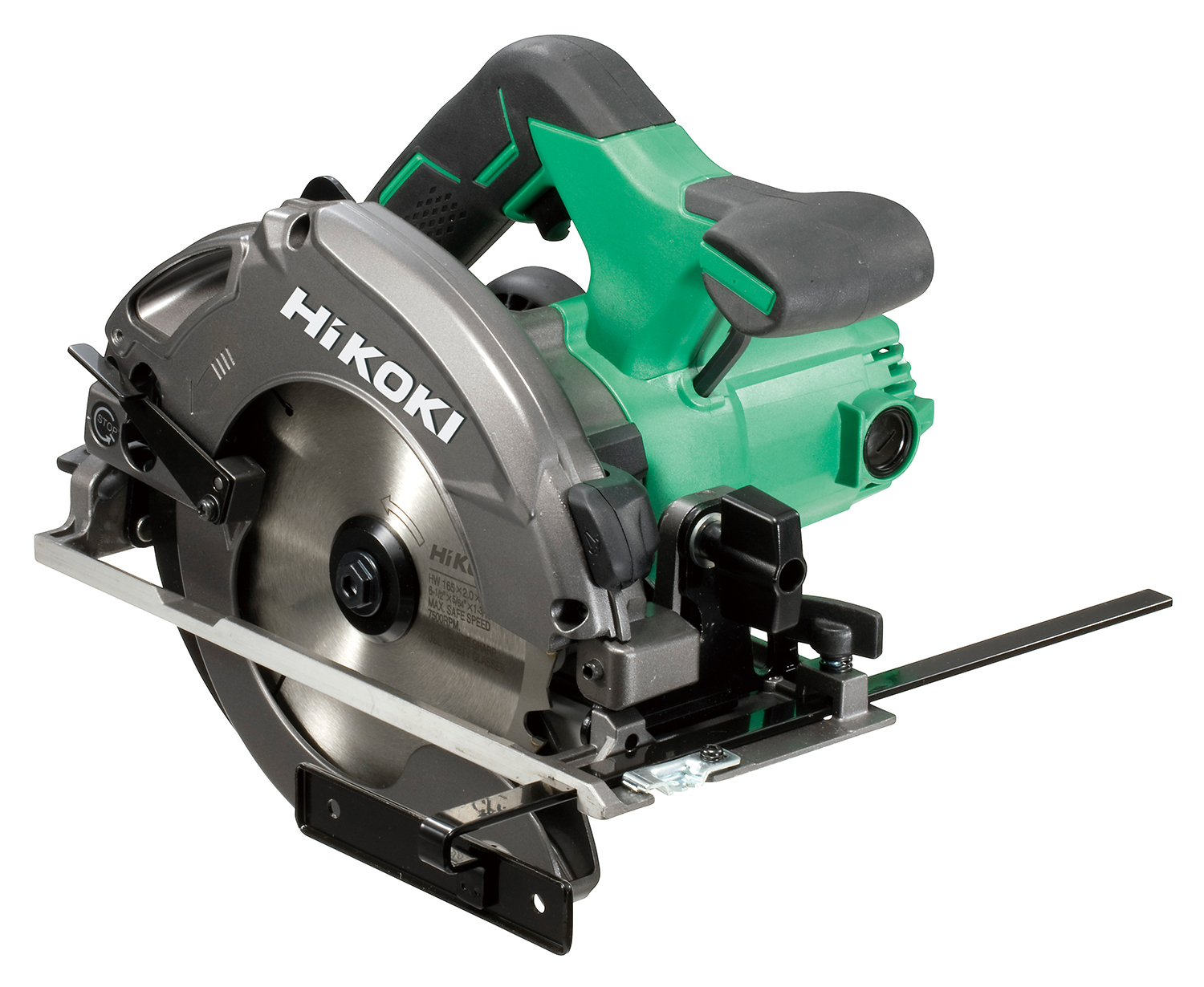

  • C6BU3

    C6BU3

  • C6BUM

    C6BUM

Guide Rail-Adapted Base for precise, straight cutting with guide rail

for C6UM / C6BUM only

Parallelism Adjustment System

  • for C6UM / C6BUM only

    Parallelism Adjustment System

Clear view over the cutting line with Blower Function

for C6U3 / C6BU3 only

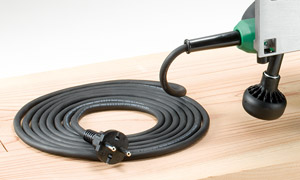

Longer cord length* 4m

    • In comparison with the previous models C6U2 / C6BU2.
    Longer cord length 4m

Convenient Cord Holder

to change the position of the power cord for user convenience

Convenient Cord Holder

Aluminium Saw Cover

Aluminium Saw Cover

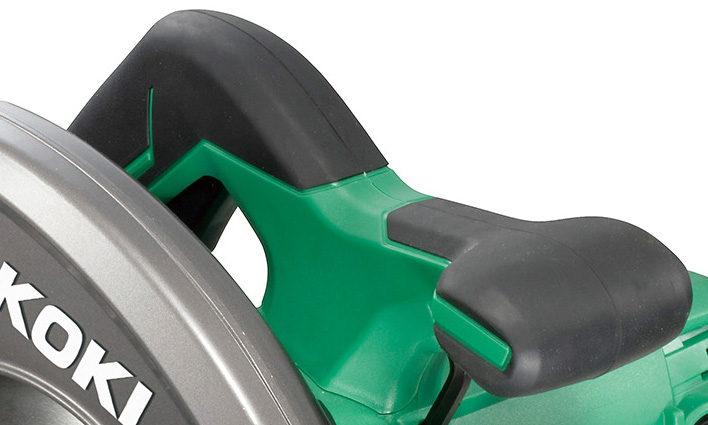

Soft Grip Handle

  • for more comfort and control

    Soft Grip Handle

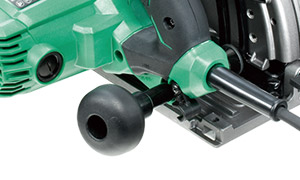

Large Knob

  • easy to adjust cut depth

    Large Knob

Riving Knife

Riving Knife

Adapter for dust collector included

Adapter for dust collector included

Convenient Electric Brake

for C6BU3 / C6BUM only

Specifications

Model C6U3 / C6BU3 C6UM / C6BUM
Capacity Blade Dia. 165mm (6-1/2")
Max Cut Depth 90° 54mm (2-1/8”)
45° 40mm (1-19/32”)
Power Input 1,300W
No Load Speed 5,800/min
Overall Length 290mm (11-13/32”) 366mm (14-13/32”)
Weight* 4.2kg (9.2lbs.) 4.9kg (10.8lbs.)
Standard Accessories Blade, Guide, Bolt, Wrench, Adapter for Dust Collector, Short Lever
  • Weight according to EPTA-Procedure 01/2003.

Optional Accessories

Part Name Length Code No. For Model
Guide Rail Guide Rail 800mm (31-1/2") 370105 All Models *
1,400mm (55-1/8") 370106
Guide Rail Adapter Ass'y Guide Rail Adapter Ass'y - 330998 C6U3, C6BU3
  • When using the guide rail with the C6U3 and C6BU3, the optional guide rail adapter ass'y is required.
