305mm Slide Compound Miter Saw C12RSH3

For Europe

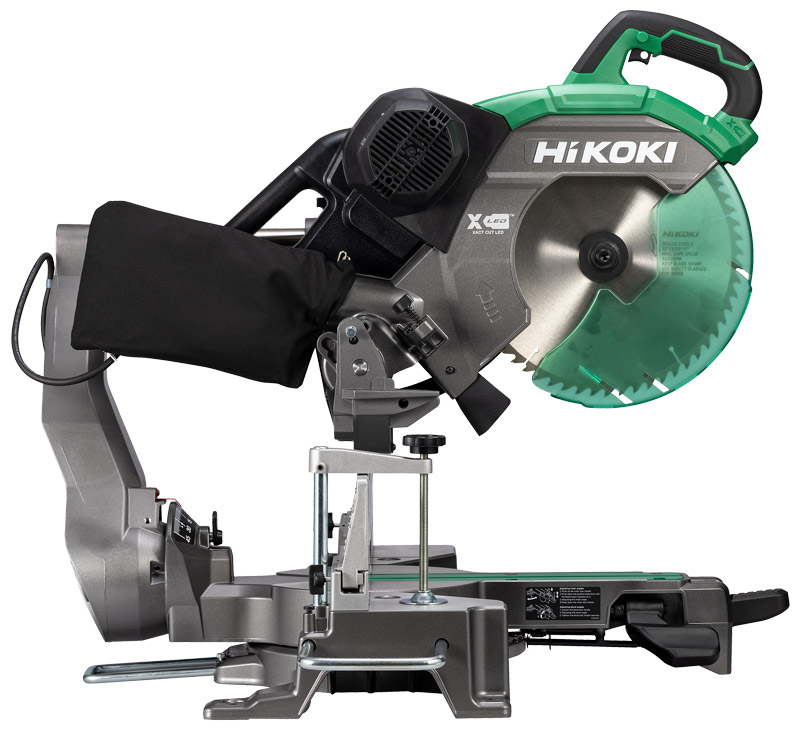

Explanatory image of overall product features. Xact LED Light Swich: ON/OFF Switch For improved visibility and accuracy. Dust Bag: Keep the work place clean and safe. Extendable Sub-table: For better stability when cutting large materials. Trigger Switch: For user safety and manoeuvrability. 630mm Wide Base: For stable and accurate cutting. Miter Lever Lock Handle:For quick locking/unlocking the turntable. Metallic miter scale: Adjustable and easy-to-read. Easy Access Front Bevel Lock Handle.

Front Bevel Lock Handle

  • The bevel lock handle is conveniently located on the operator's side for easy loosening or tightening of bevel lock and improved efficiency.

XACT CUT LED™ (HiKOKI's original LED Lighting System)

  • The XACT CUT LED™ LED lighting system uses a LED light to cast a shadow where the blade will cut on the material for precise and efficient cutting.

    XACT CUT LED logo
    Shadow of blade teeth projected onto workpiece.

Ease-to-use Miter Lock Lever Handle

  • The miter lock lever handle enables for quick and easy locking or unlocking the turntable.

Linear Ball Bushings for Smooth Sliding

The linear ball bushings enable smooth and precise sliding.

Compact Slide System

The compact slide system allows the saw head to slide back and forth along fixed rails, making it easy to work in compact places.

630mm Wide Base and large Sub-fence

The 630mm wide base and large Sub-fence support large materials for stable and accurate cutting.

Adjustable metallic miter scale

The highly rigid metallic miter scale has nine positive stops and indications, for easy to read measurements and quick settings.


Blade Diameter 305mm (12")
Saw Blade Bore 30mm (1-3/16")*1
25.4mm (1")*2
Capacity (H x W) 0°(Right Angle) 105 x 312mm (4-1/8" x 12-1/4")*3
107 x 312mm (4-3/16" x 12-1/4")*4
Miter Left/Right 45° 105 x 220mm (4-1/8" x 8-5/8")*3
107 x 220mm (4-3/16" x 8-5/8")*4
Miter Right 57° 105 x 170mm (4-1/8" x 6-11/16")*3
107 x 170mm (4-3/16" x 6-11/16")*4
Bevel Left 45° 68 x 312mm (2-5/8" x 12-1/4")*3
70 x 312mm (2-3/4" x 12-1/4")*4
Bevel Right 45° 43 x 312mm (1-11/16" x 12-1/4")*3
45 x 312mm (1-3/4" x 12-1/4")*4
Miter Left/Right 45° +
Bevel Left 45°
68 x 220mm (2-5/8" x 8-5/8")*3
70 x 220mm (2-3/4" x 8-5/8")*4
Miter Left/Right 45° +
Bevel Right 45°
43 x 220mm (1-11/16" x 8-5/8")*3
45 x 220mm (1-3/4" x 8-5/8")*4
No Load Speed 4,000/min
Miter Angle Right 0 – 57°
Left 0 – 45°
Bevel Angle Right 0 – 45°
Left 0 – 45°
Positive Miter Angle Stop 0, Right and Left 15°, 22.5°, 31.6°, 45°
Dimensions Without Sub-table 655 x 873 x 724mm (25-25/32" x 34-3/8" x 28-1/2")
With Sub-table 916 x 873 x 724mm (36-1/16" x 34-3/8" x 28-1/2")
Weight*5 25.5kg (56.2lbs.)
Standard Accessories*6 Saw Blade, Dust Bag, Vise Assembly,
8mm Hex. Bar Wrench, Holder, Sub table Assembly
  1. Europe
  2. APAC, ANZ
  3. Europe, ANZ
  4. APAC
  5. According to EPTA-Procedure 01/2014.
  6. Standard accessories vary by country or area.
  • Please contact local dealers for product availability and product details.
