28mm (1-1/8") Rotary Hammer DH28PD

Rotary Hammer DH28PD

Features

Equipped with the Our original dust collection unit
that can be detached from the tool body

Enable to improve working environment thanks to the high dust extraction ratio and the fast drilling speed.
Dust extraction ratio up by approximately 60% compared with the conventional model.*1
Easier to collect dust remaining in the hole.

Comparison of dust extraction ratio
  1. In comparison with the conventional model 24mm (15/16") Rotary Hammer DH24PD3.
  2. The numbers in the chart are relative values when the dust extraction ratio of the conventional model DH24PD3 in indexed at 100 under the following working conditions : drilling holes in concrete in the level direction at drill diameter of 16mm and depth of 40mm.

Dust box easy to remove

  • The dust box is easy to remove from the dust collection unit, empty and clean.
    (The maximum capacity of a dust box : Approximately 130 holes in concrete at drill diameter of 6mm and depth of 28mm. )

    Dust box easy to remove

Useful adjusters for adjusting the position of the adjuster rod

  • According to applications, you can detach the dust collection unit and attach the provided cover over openings in the tool body.
    And then the DH28PD can be handled as a rotary hammer without dust collection system

    Useful adjusters for adjusting the position of the adjuster rod

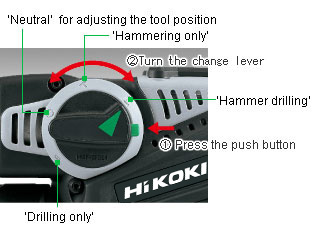

Change lever easy to switch the action mode

  • Change lever easy to switch the action mode

    You can switch actions to the 3 modes of "hammer drilling", "hammering only", and "drilling only" by turning the change lever while pressing the push button.
    When this rotary hammer is set to hammering only mode, the rotation is released by pressing the push button and turning the change lever to the neutral position.
    And then the mounted tool such as chisel or cutter can be adjusted to desired position by turning the grip.

Push button easy to change the direction of bit rotation

  • It is easy to change the direction of bit rotation by pushing the push button.

    Push button easy to change the direction of bit rotation

Specifications

Capacity: Concrete: Drill Bit 28mm (1-1/8") *
Capacity: Concrete: Drill Bit 4-18mm (5/32-23/32") with dust collection unit
Capacity: Concrete: Core Bit 80mm (1-1/4") *
Capacity: Wood 32mm (1-1/4") *
Capacity: Mild Steel 13mm (1/2") *
Power Input 720W
Bit Shank SDS-plus
No Load Speed 0-1,050/min.
Full Load Impact Rate 0-4,000/min.
Overall Length 458mm (18-1/32")
Weight 4.7kg (10.4lbs.)
Standard Accessories Side Handle, Depth Stopper Cover, Carrying Case, Rubber Cap
  • Available only when the dust collection unit is detached from the tool body.

Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.

  • Please contact local dealers for product availability and product details.
