125mm Wall Chaser CM5MA

125mm Wall Chaser CM5MA
Specifications and others

Adjustable Depth and Width

  • The CM5MA wall chaser cuts slits up to a groove width of up to 35mm. The cutting depth can be freely selected from 10 to 40mm.

    Max. cutting depth: 40mm, Max. cutting width: 35mm
    Maximum Channel for Cable and Pipe Installations: 1,400mm2

Fast Work Progress

  • With the powerful 1,900W motor and constant speed control, fast work progress is assured.

    Working image

Lightweight* and Easy to Handle

The CM5MA wall chaser is lightweight for its power weighing at 4.7kg.

  • For a wall chaser with 40mm cutting depth.

Optimum Control

  • The front and rear ergonomic handles are well positioned and offer optimum control.

    Front and rear ergonomic handles

Safety Features

HiKOKI's safety features will keep the user as safe as possible during operation.

  • Aluminum Die-Cast Cover
  • Soft Start
  • Anti-Restart Protection

Cleaner Working Environment

The wall chaser can be connected to a HiKOKI vacuum for low dust working.

Specifications

Capacity Wheel Dia. 125mm
Min. Cut Depth 10mm
Max. Cut Depth 40mm
Groove Width Options 9.0 / 15.5 / 22.0 / 28.5 / 35.0mm
Rated Input Power 1,900W (230V)
No Load Speed 5,000/min
Dimensions Length 437mm
Width 195mm
Height 175mm
Weight without Mains Cable*1 4.7kg
Standard Accessories*2 2-hole Spanner, Chase Chisel,
Plastic Case, Diamond Cut-off Wheels
  1. Weight: According to EPTA-Procedure 01/2003.
  2. Standard accessories vary by country or area.

Optional Accessories

Quick Channelling In A Single Operation

With optional diamond wheels, you can cut wall channels in just one step without chiseling out between cuts.

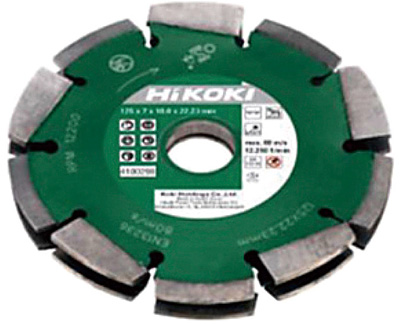

  • 2-Row Diamond Wheel

    Code No.4100298

    2-Row Diamond Wheel

  • 3-Row Diamond Wheel

    Code No.4100299

    3-Row Diamond Wheel
